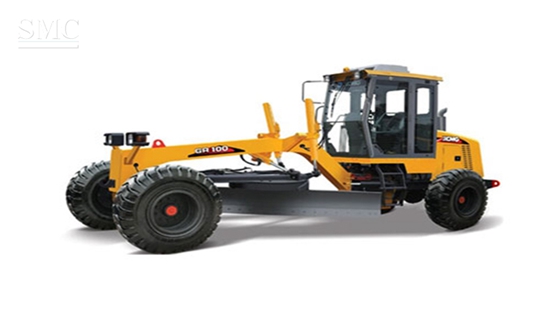

XCMG 7.0ton Motor Grader GR100

Product Detail | Technical Information | Packaging | More

Product Detail

GR100 of motor grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.

Technical Information of 7.0ton Motor Grader GR100:

Basic specification
Engine model	4BT3.9
Rated power/speed	75/2400kw/rpm
Dimension(LxWxH)	6880×2375×3150mm
Operating weight(Standard)	7000kg
Performance specification
Travelling speed ,forward	5、10、20、39km/h
Travelling speed ,reverse	8、25km/h
Tractive force(f=0.75)	41.6KN
Max. gradeability	20%
Tire inflation pressure	350KPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3～1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box
Frame articulation angle	±27°
Min. turning radius using articulation	5.9m
Blade
Maximum lift above ground	300mm
Maximum depth of cutting	350mm
Maximum blade position angle	45°
Blade cutting angle	28°—70°
Circle reversing rotation	120°
Moldboard width X height	3048×500mm

Packaging & Delivery of 7.0ton Motor Grader GR100:

Packaging Details:Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:7~15 days

Main Features of 7.0ton Motor Grader GR100:

1. More excellent performance

2. More reliable quality

3. Easier to operate

4. Easier to maintain

5. More energy-efficient and environmental friendly
