Measurement principle: Vibrating tuning fork resonance frequency detection

Wetted material: 316L / Hastelloy / Titanium optional

Signal output: 4-20mA, RS485 Modbus, HART

Protection class: IP65/66/67

Installation form: flange / thread / clamp connection

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai MAC is a leading Tuning Fork Density Meter manufacturer and supplier.

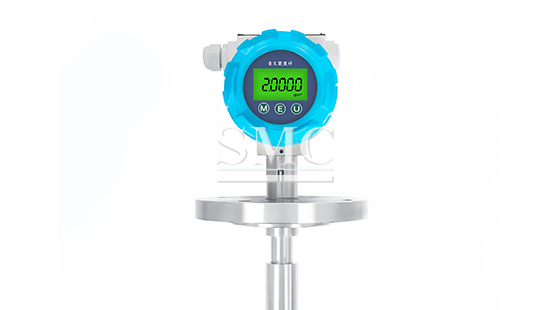

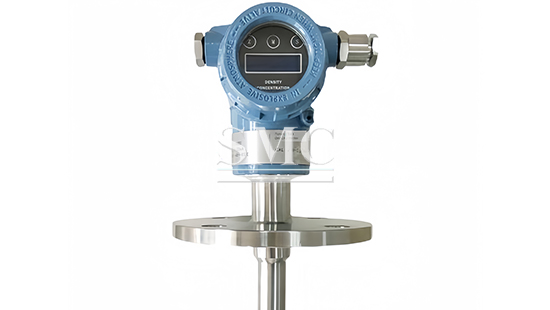

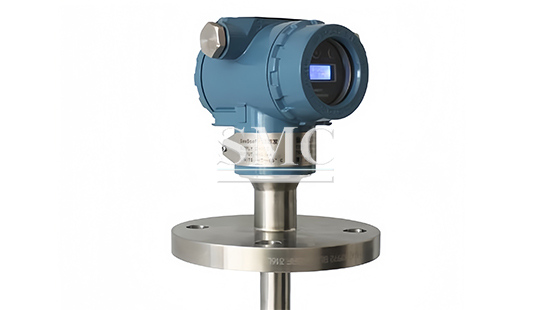

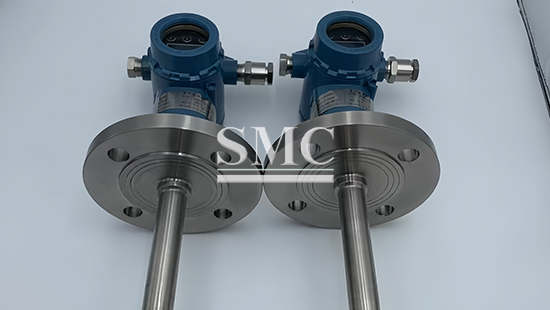

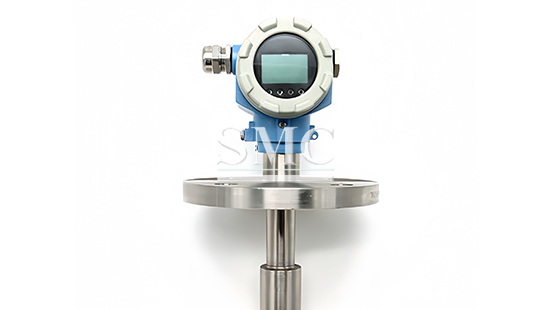

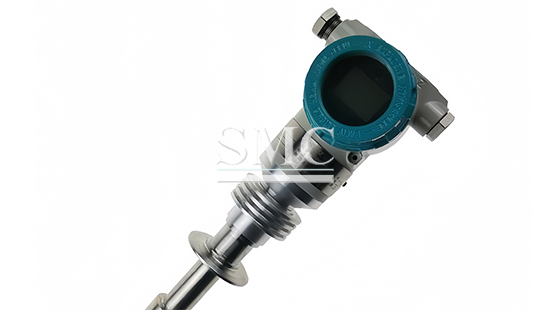

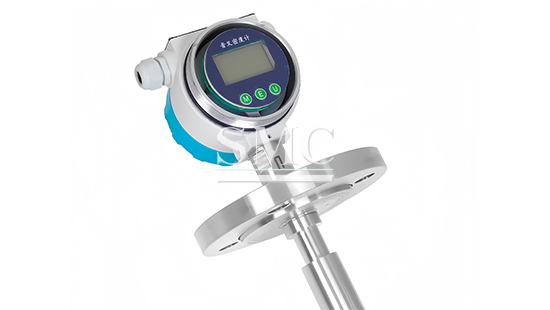

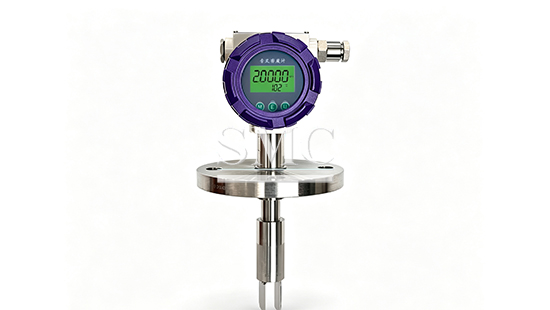

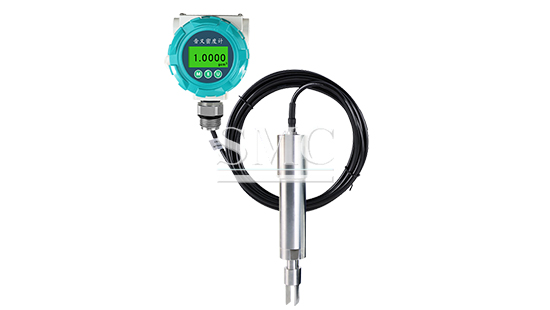

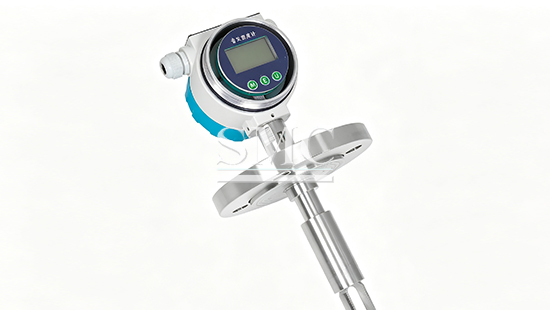

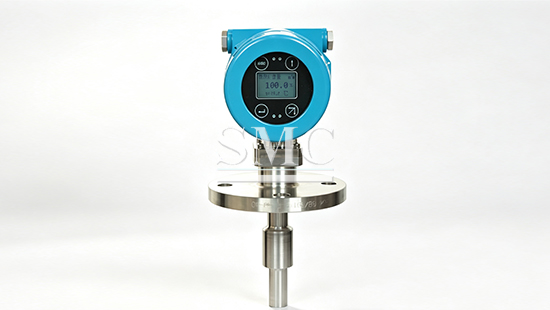

Tuning Fork Density Meter measures liquid density through changes in the resonant frequency of a vibrating fork. With temperature compensation and industrial signal outputs, it supports continuous monitoring in pipelines and tanks for blending, concentration control and process management.

If you want to know more about our Tuning Fork Density Meter, please contact us. We will reply within 24 hours.

1. Tuning Fork Probe: Detects liquid density through changes in vibration frequency.

2. Temperature Sensor: Measures liquid temperature and supports automatic density compensation.

3. Transmitter Housing: Contains the processing circuit, display and data conversion module.

4. Process Connection: Flange, thread or clamp options for pipelines and tanks.

5. Signal Module: Transmits density readings through 4-20mA or digital communication.

1. Continuous Measurement: Monitors liquid density online, reducing frequent manual sampling.

2. Temperature Compensation: Helps correct density readings as the liquid temperature changes.

3. Low Maintenance: Simple fork construction reduces routine mechanical maintenance requirements.

4. Output Options: 4-20mA, RS485 or HART for connection to control systems.

5. Material Options: 316L, Hastelloy or titanium wetted parts suit different liquids.

1. Petrochemicals: Monitors oil and liquid hydrocarbon density during storage and transfer.

2. Chemical Processing: Provides density feedback for solution blending and concentration control.

3. Food and Pharmaceuticals: Monitors syrup, beverage and process solution consistency.

4. Battery Production: Tracks sulfuric acid electrolyte density in lead-acid battery processes.

5. Wastewater Treatment: Monitors suitable sludge and treatment liquids for dosing control.

Technical Information Of Tuning Fork Density Meter:

ITEM	RANG
Measurement range	Liquids: 0.5-2.5 g/cm³; Gases: 0.001-1 g/cm³
Measurement accuracy	±0.001~±0.002g/cm³
Repeatability	±0.0001~±0.0002 g/cm³
Operating temperature	-50℃ to +200℃
Work pressure	Maximum 207 bar (3000 psi)
Viscosity range	0-2000cP
Output signal	4-20mA、HART、RS485

Packing Of Tuning Fork Density Meter:

Standard Packaging

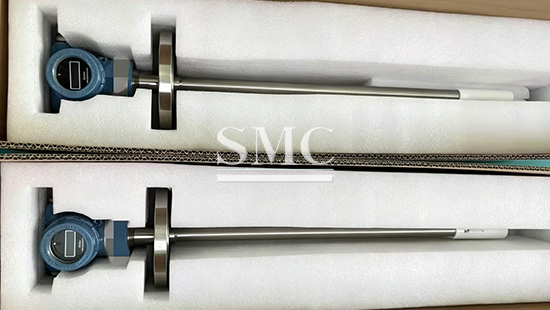

Each tuning fork density meter is wrapped with anti-static PE film and foam cushion for probe protection. The instrument main body and spare parts are packed separately in anti-shock export cartons. All cartons are put into reinforced plywood cases and fixed on fumigated wooden pallets with steel straps and stretch film for international sea shipment.

Shipping

We support FCL and LCL sea freight, air freight and express delivery depending on order quantity and destination. Available trade terms include EXW / FOB / CIF. Other terms may be available upon request. Shipping costs are calculated based on cargo volume, gross weight, destination and selected transportation method.

Lead Time

Samples: 10-15 working days

Standard orders: 20–25 working days

Customized orders: 25–40 working days

Q1: How long does sample preparation take?

A: Tuning fork density meter sample production takes 10-15 working days according to standard probe configuration.

Q2: What information do you need for a custom quotation?

A: We need density measuring range, medium type, temperature & pressure, wetted material, installation way and signal output requirement for accurate quotation.

Q3: What is the MOQ and production lead time?

A: MOQ is 1 set. Standard orders take 15–25 working days, customized orders take 25–40 working days.

Q4: Can this meter measure corrosive liquid?

A: Yes. We can select Hastelloy, titanium alloy or PTFE coated fork probe for strong corrosive medium such as acid and alkali.

Q5: Does the instrument need frequent calibration?

A: The tuning fork sensor has stable performance. Regular annual calibration is enough under normal working conditions, no frequent adjustment required.

Q6: Can it be installed directly on the side of storage tank?

A: Yes. Flange side-mounted type is available. Ensure the probe is fully immersed in liquid and avoid large bubble impact on the fork tines.
