Sound insulation level: 30dB–45dB optional

Door leaf material: galvanized steel + composite sound insulation core

Sealing design: Full surrounding rubber sealing structure

Environmental Level: International E0 environmental standards

Product Detail | Technical Information | Packaging | More

Product Detail

Shanghai MAC is a leading Soundproof Door manufacturer and supplier.

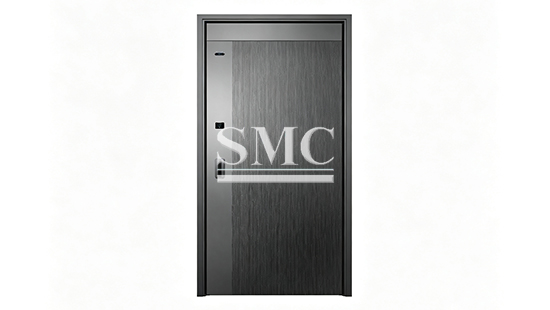

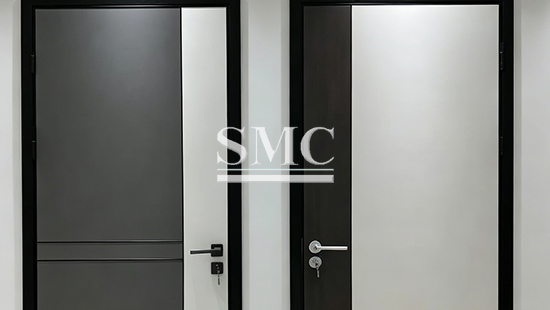

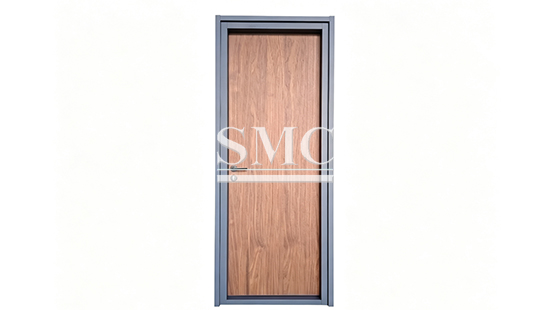

Soundproof Door combines galvanized steel panels, sound-absorbing layers and perimeter seals to reduce noise transmission. It is suitable for workshops, generator rooms, studios, offices and quiet residential spaces. The composite core limits sound transfer, while sealed edges help reduce leakage around the door frame.

If you want to know more about our Soundproof Door, please contact us. We will reply within 24 hours.

1. Galvanized Steel Panel: Protects the internal core against impact and corrosion.

2. Sound-absorbing Core: Reduces sound reflection and vibration within the door leaf.

3. Insulation Board: Adds a barrier layer to reduce noise transmission.

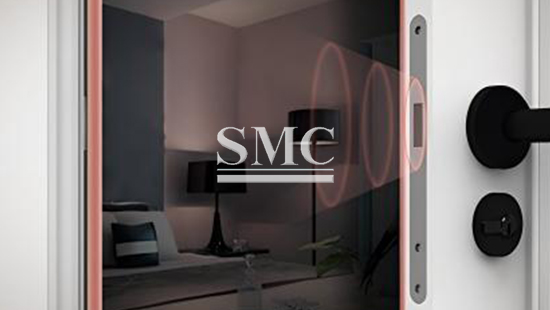

4. Perimeter Seals: Close gaps between the door leaf and frame.

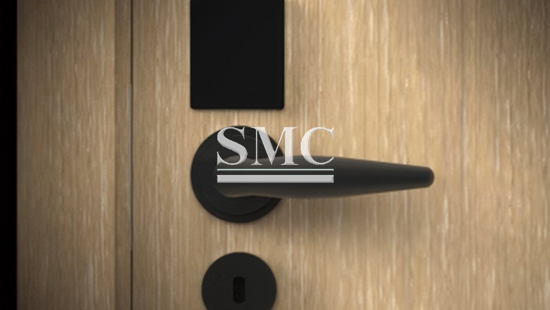

5. Quiet Hardware: Hinges and locks support smooth operation and tight closing.

1. Composite Construction: Combines sound absorption and barrier layers for noise reduction.

2. Sealed Edges: Helps reduce sound leakage around the closed door.

3. Durable Surface: Galvanized steel provides protection against everyday wear and corrosion.

4. Quiet Operation: Hardware helps reduce friction noise during opening and closing.

5. Core Options: Flame-retardant and thermal insulation properties depend on the selected configuration.

1. Workshops: Limits machine noise spreading into nearby offices and rest areas.

2. Equipment Rooms: Helps contain noise from generators and pumps.

3. Recording Studios: Reduces external noise interference during recording and broadcasting.

4. Offices and Meetings: Improves concentration and helps contain private conversations.

5. Hotels and Homes: Reduces noise transfer into bedrooms and quiet study rooms.

Technical Information Of Soundproof Door:

Technical Item	Specific Parameters
Standard Door Size	9002100mm / 10002100mm / customized
Effective Sound Insulation Value	30dB / 35dB / 40dB / 45dB optional
Door Leaf Thickness	70mm / 80mm / 100mm optional
Outer Panel Material	0.8mm galvanized steel sheet, electrostatic spraying finish
Inner Core Material	High-density sound-absorbing cotton + polymer sound insulation board
Sealing Material	EPDM weatherproof soundproof rubber strip
Fire Rating	Class B fire retardant
Opening Mode	Single open / double open / sliding optional
Surface Color	Gray, white, blue, customized color

Packing of Soundproof door:

Standard Packaging

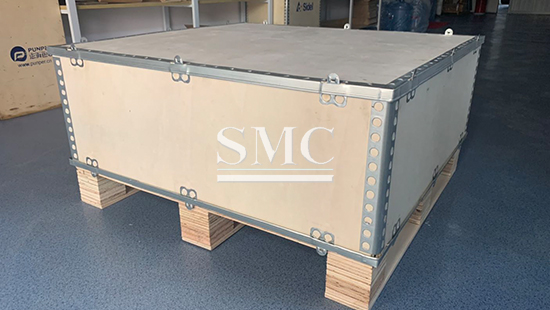

Each soundproof door is wrapped with protective PE film and secured with foam corner guards for four corners. Door frames, door leaves and loose hardware accessories are packed separately in reinforced export cartons. All finished products are fixed with wooden frames and placed on fumigated wooden pallets, secured with steel straps and stretch film for international shipment.

Shipping

We support FCL and LCL sea freight, air freight and express delivery depending on order quantity and destination. Available trade terms include EXW / FOB / CIF. Other terms may be available upon request. Shipping costs are calculated based on cargo volume, gross weight, destination and selected transportation method.

Lead Time

Samples: 10 working days

Standard orders: 15–25 working days

Customized orders: 25–40 working days

Q1: How long does sample preparation take?

A: Soundproof door sample production takes 10 working days according to standard size configuration.

Q2: What information do you need for a custom quotation?

A: We need door size, opening method, required sound insulation decibel level, color and order quantity to provide accurate quotation.

Q3: What is the MOQ and production lead time?

A: MOQ is 10piece. Standard orders take 15–25 working days, customized orders take 25–40 working days.

Q4 What is the difference between soundproof door and ordinary door?

A: Ordinary doors only have simple door panel structure with serious gap sound leakage. Our soundproof door adopts multi-layer sound absorption barrier and full sealing structure, which can effectively reduce noise transmission and achieve professional noise reduction effect.

Q5 Can this door be used for outdoor factory environments?

A: Yes. The galvanized steel surface is anti-rust and weather-resistant, suitable for outdoor workshops, equipment rooms and long-term open-air building entrances.

Q6 Will the soundproof effect decrease after long-term use?

A: The internal sound-absorbing material is stable and non-deformable, and the rubber sealing strip has aging resistance. The overall sound insulation performance remains stable after long-term use.
