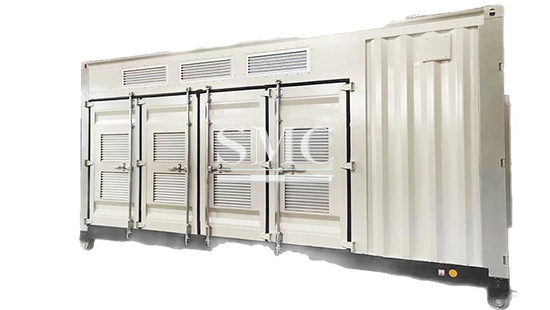

Energy Storage Battery Compartment

Model：LPF-1500V-3344kWh/5015kWh/6688kWh

Battery Cell Type：Lithium iron phosphate, rectangular aluminum casing

Battery Cell Capacity(AH)：314

Product Detail | Packaging

Product Detail

Shanghai Mac Corporation is one of the leading and reliable manufacturers and exporters of Energy Storage Battery Compartment in China. We provide the high quality matched products and excellent services for various industries.

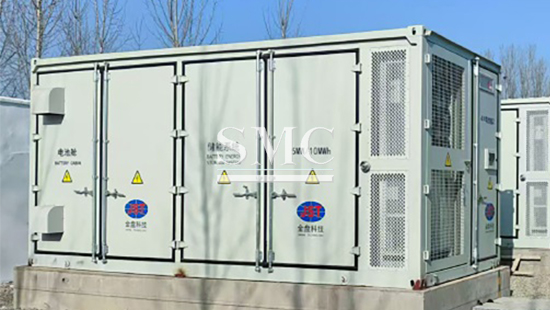

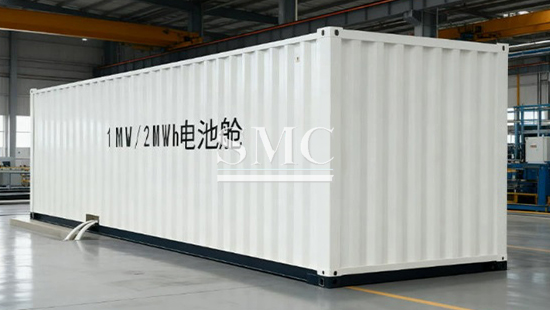

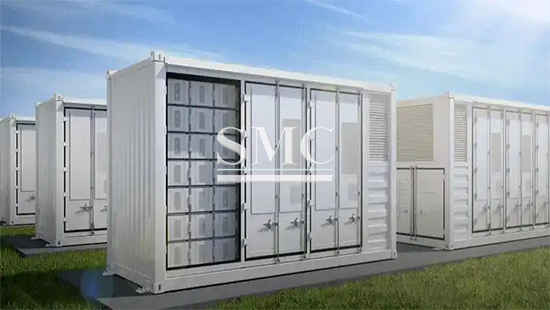

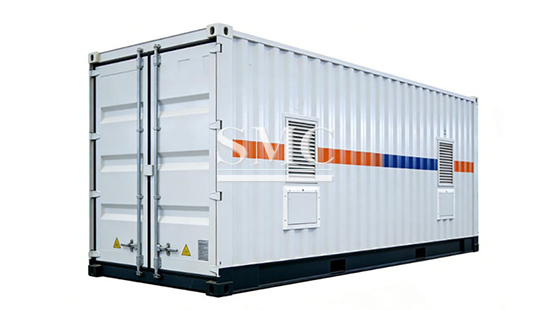

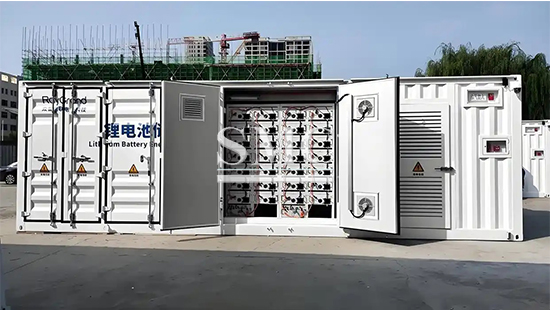

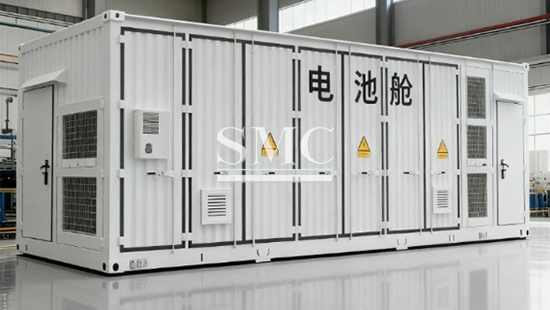

The energy storage battery compartment features an integrated container design, housing a lithium-ion battery pack, a battery control cabinet, a temperature control system (liquid-cooled), an automatic fire suppression system, and a lighting system. After the current from the battery clusters is consolidated in the battery control cabinet, it is fed into the DC side of the energy storage converter. The containerized installation of the battery system ensures a high degree of system integration and strong environmental adaptability, reducing the workload associated with on-site installation, commissioning, and subsequent maintenance.

If you want to know more about our Energy Storage Battery Compartment, please feel free to contact us, we will reply you within 24 hours.

Charge/Discharge Rate: 0.5C/0.25C
Rated Capacity (kWh): 3343.974/5015.961/6687.948
Nominal Voltage (V): 1331.2
Battery Temperature Control Method: Liquid-cooled
Enclosure Material: Container
Operating Altitude: ≤2000 meters (no derating)
Operating Temperature Range: -25 to 45°C
8.Protection Rating: Not less than IP54
9.Corrosion Resistance Rating: Not less than C3

High Efficiency and High Energy Density
Multi-Level Safety Protection
Precise Thermal Management
Modularity and Flexibility
Strong Environmental Adaptability

Addressing the issue of unstable power generation from renewable energy sources such as wind and solar power
At the power grid level, energy storage battery modules serve as key regulators for ensuring the safe and economical operation of the power system
A “cost-saving tool” and “power guardian” for businesses
Applications include microgrids in remote areas and power buffering for electric vehicle fast-charging stations

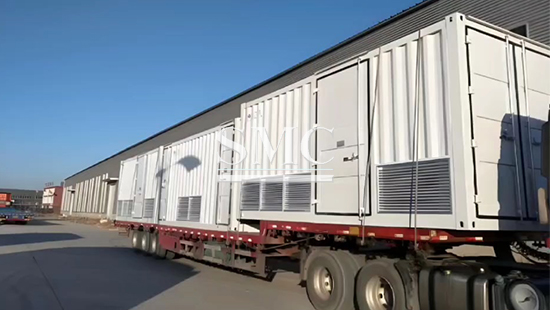

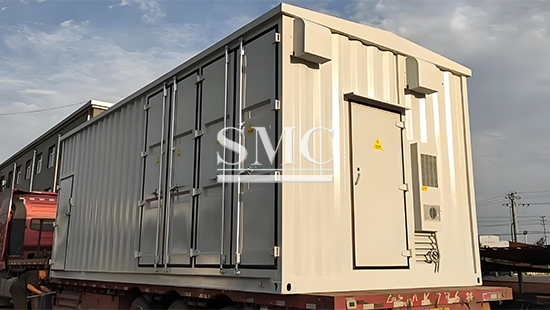

Packaging of energy storage battery compartment：

Shanghai Mac Corporation Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)SMC Standard

2)Customization
