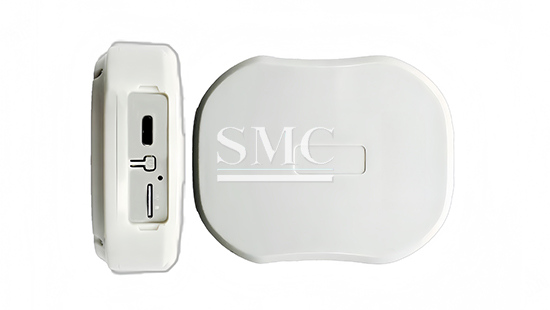

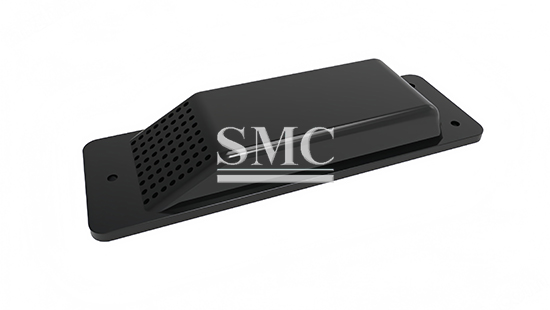

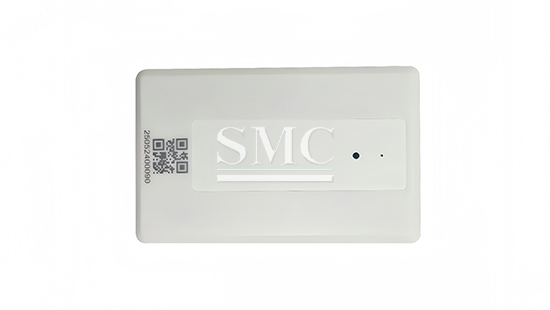

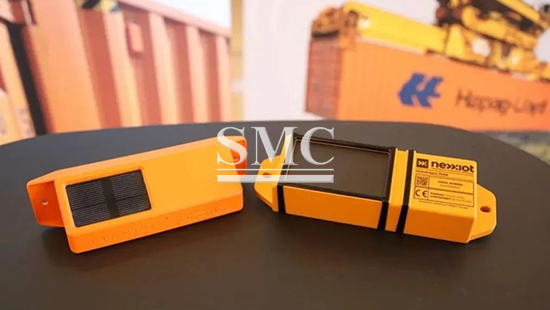

Containers GPS Tracker
Product Type: GNSS cellular container tracking unit
Positioning: GPS / GNSS + LBS + BLE
Connectivity: 4G Cat-1 / NB-IoT
Power: Rechargeable or long-life cell
Sensors: Door / shock / temperature
Shanghai MAC is a leading Containers GPS Tracker manufacturer and supplier

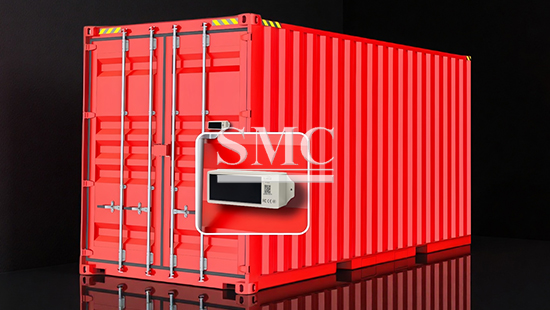

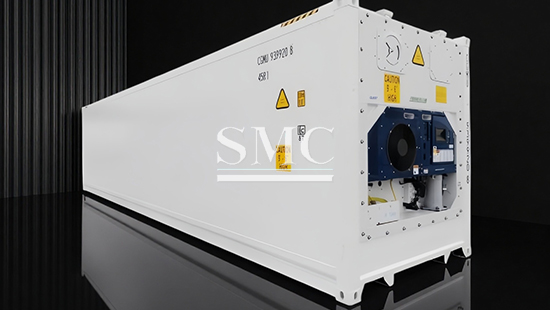

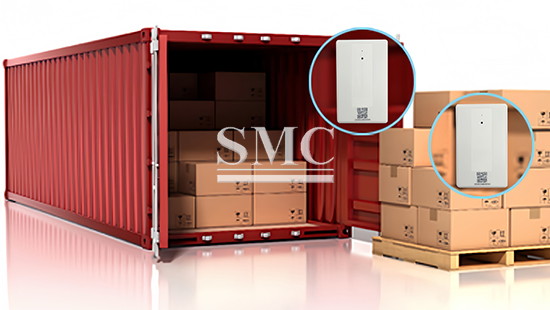

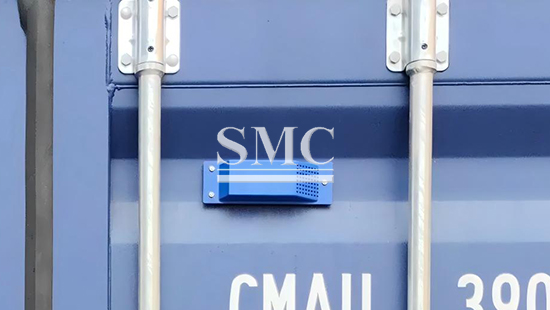

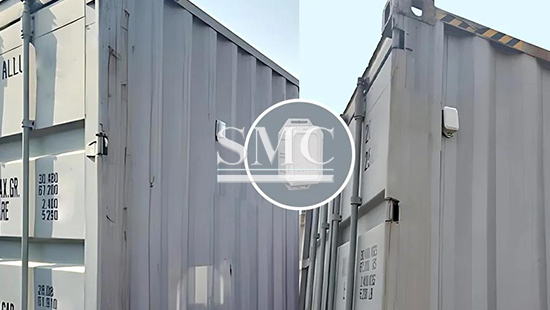

A containers GPS tracker is a battery-powered GNSS and cellular unit built to monitor the position, status, and movement of freight containers across the transport chain. It is widely deployed on dry boxes, reefer containers, and tank units in port yards, on ocean vessels, and at inland depots. It solves typical problems of manual check-in: blind spots in cargo location, late detection of route deviation or unauthorized opening, loss of high-value loads, and idle boxes that tie up fleet assets. It reports live position and door, shock, and temperature events through 4G or NB-IoT, replacing radio calls and paper logs with continuous visibility. Compared with wired vehicle trackers, this self-contained unit installs without harness changes and keeps working after the box is lifted off the chassis, giving operators one view of every asset.
If you want to know more about our electronic tracking products or Containers GPS Tracker price please feel free to contact us, we will reply you within 24 hours.
Technical Information Of Containers GPS Tracker:
|
GSM Specification |
|
|
Communication system |
GSM |
|
Frequency |
GSM:850/900/1800/1900MHz |
|
GPRS |
Class 12.TCP/IP |
|
Memory |
32+32Mb |
|
Phase error |
RMSPE<5,PPE<20 |
|
Max output |
GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm |
|
Max frequency error |
±0.1ppm |
|
Receive sensitivity |
Clas II RBER2%(-102dBm) |
|
GPS Specification |
|
|
GPS chip |
High sensitivity GPS chips |
|
Frequency |
GPSL1,1575.42MHz |
|
Channel |
32 |
|
Location accuracy |
<10meters |
|
Tracking sensitivity |
-165dBm |
|
Acquisition sensitivity |
-148dBm |
|
TTFF(open sky) |
Avg.hot start≤1sec Avg.cold start≤32sec |
|
Others |
|
|
Light sensor |
Tamper alert |
|
Antenna |
Built-in quad band GSM antenna,GPS ceramic antenna |
|
LED indicator |
Green for working status:Red for power |
|
Battery |
10000mAh/3.7V lithium polymer battery… |
|

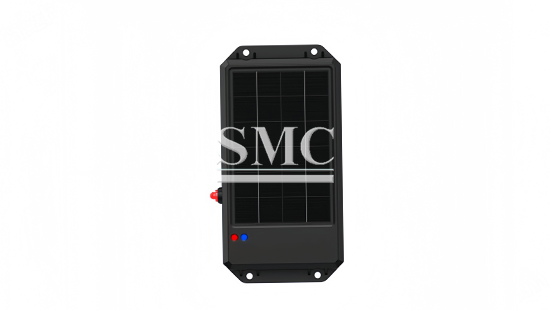

Solar power |
5.5V/400mA(sun is directly overhead) |
|
Operating temperature |
-20℃~70℃ |
|
Dimension |
355*61*110*33mm |
|
Weight |
637g |
Packing Of Containers GPS Tracker:
Standard Packaging
Each GPS tracker is wrapped with anti-static foam and fitted with terminal protective caps to avoid short circuit, dust accumulation and oxidation. Each unit is individually packed in a reinforced gift box with EPE foam inner cushioning, securing the device, buttons and sensor ports. Each box is attached with a product label, test report and certificate of conformity.
Multiple individual boxes are arranged with dividers and packed into thickened export corrugated cartons. All cartons are fully sealed and reinforced with packing straps. For sea shipment, cartons are stacked on IPPC-marked fumigated wooden pallets, tightly wrapped with stretch film and clearly labeled with standard shipping marks.
Shipping
We support FCL/LCL sea freight, air freight and international express according to order quantity, cargo volume, gross weight and destination. Applicable trade terms include EXW, FOB and CIF; other terms are available upon request. Shipping cost is calculated based on actual cargo volume, weight, destination and transportation mode. Complete shipping documents such as packing list, commercial invoice, bill of lading and IPPC fumigation certificate are provided for customs clearance.
Lead Time
Sample orders: 3–7 working days
Standard batch orders: 15–25 working days
Customized program & logo orders: 25–40 working days
Q1. What environments can the container GPS tracker adapt to?
A:This container GPS tracker features rugged waterproof housing and anti-shock structure, suitable for sea transportation, yard stacking, long-distance logistics and outdoor harsh working conditions.
Q2. Can the GPS tracker work stably during long-term container storage?
A:Yes. The device supports ultra-long standby battery life, low-power operating mode and automatic dormant update, ensuring stable positioning data for long-term static container storage and transit.
Q3. What customization options are available for the container tracker?
A:We support customized positioning frequency, sensor functions, network protocols, logo printing and outer casing design according to project and fleet management requirements.
Q4. How does this tracker ensure container cargo safety?
A:It supports real-time location reporting, abnormal vibration alert, displacement alarm and low battery reminder, helping managers monitor container status and avoid cargo loss or abnormal handling.
Q5. Is the container GPS tracker easy to install and reuse?

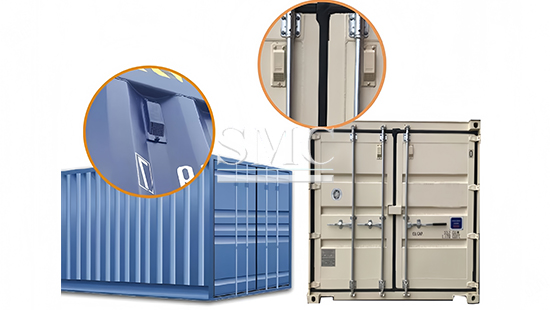

A:The tracker adopts simple fixed installation without wiring, can be quickly deployed on various containers, and is fully reusable for repeated logistics cycles.
