Width:<1000mm
Rolling Dia:<600mm

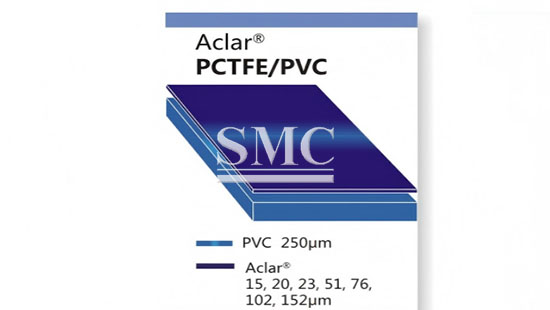

Thickness:PVC 250 mics + Aclar® 15/20/23/51/76/102/152 mics

Performance Aclar PVC
Chemical Constitution PCTFE VCM
Crystallinity Semi-Crystalline:20-35% Amorphous:5%(Crystalline)
Melting Point 211℃ 180℃
Glass Transition Temperature 72℃ 80℃
Density1 2.11g/cm³ 1.38g/cm³
Friction Coefficient 0.58 0.2 to 0.3
Vapor Barrier Property2 Medium to Ultra High Low
Water Steam Transmissibility3 0.11 g/m²/day (UItRx2000) 2.8 g/m²/day(250μ)
Ingredient Pure PCTFE homopolymers Stabilizer,lubricant,impact modifier,iller,
and pigment.No plasticizer or phthalates.
Dimensional Stability4 MD:+5%to+15% MD:-4%to-8%
CD:-5%to-15% CD:+1%to+2%
Up to-3.5%for Laminate
Processing Technology Melt Extrusion Calendering

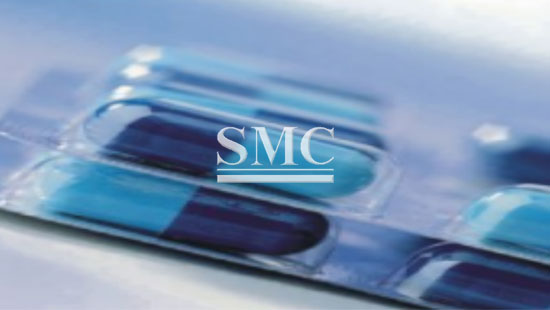

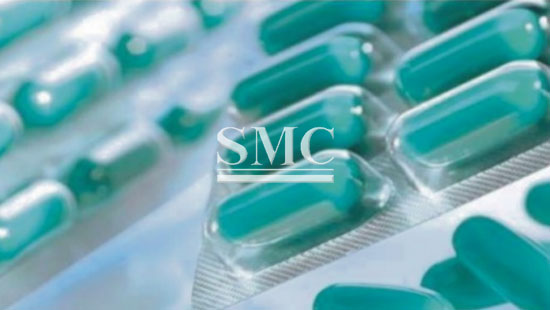

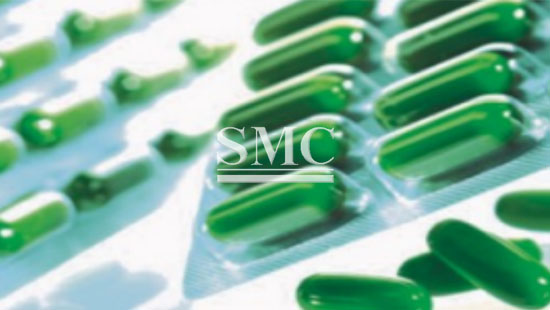

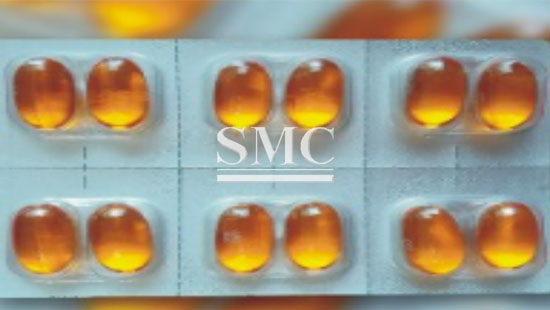

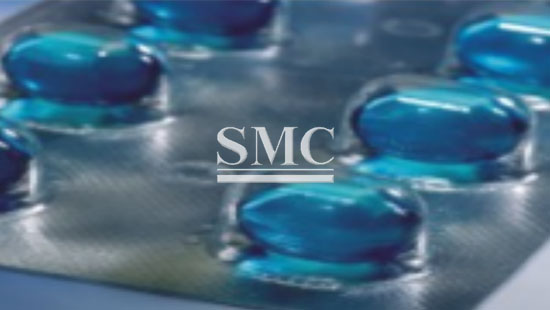

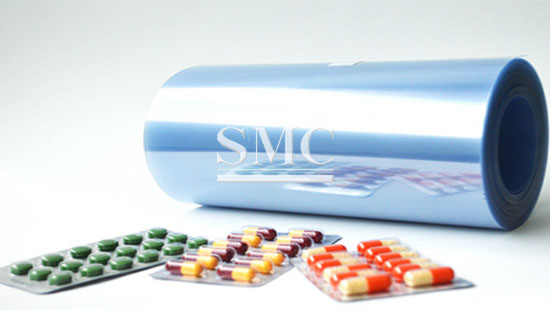

Oral liquid capsules tablets pills and other pharmaceutical products in blister
