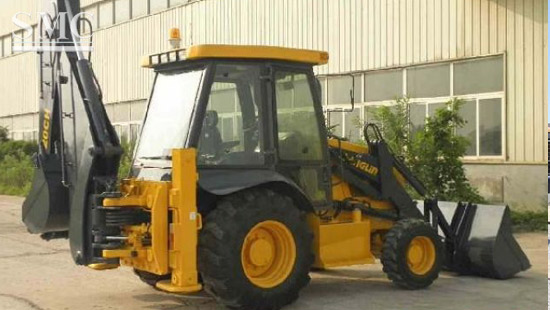

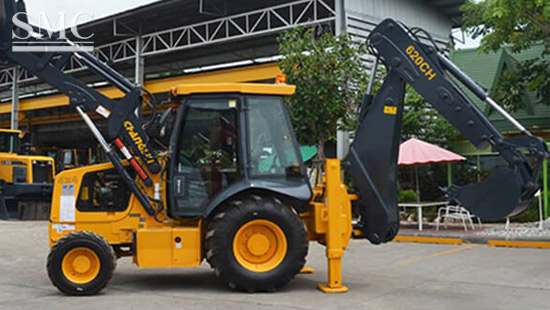

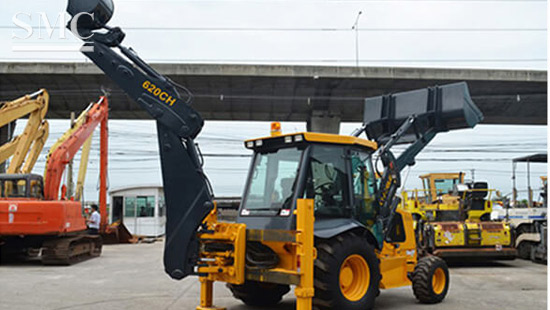

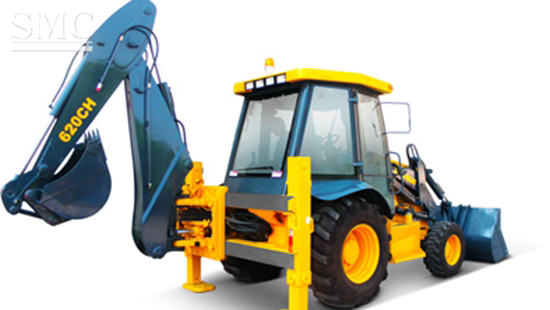

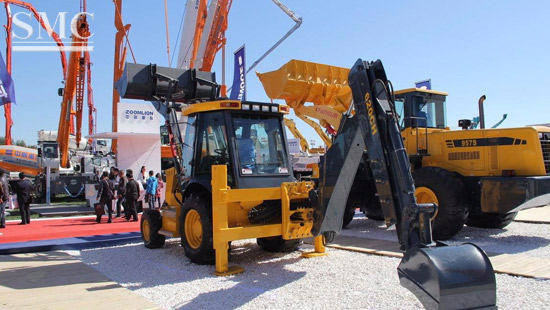

1

Length(with   bucket on ground)

5835(mm)

2

Width (at   landing leg)

2240(mm)

3

Width(to the   outside of the tire)

1993(front   wheel) 2057mm(rear wheel)

4

Bucket width

2313(mm)

5

Height (to the   top of the cab)

2720(mm)

6

Height (to the   top of the digging arm)

3548(mm)

7

Wheelbase

2155.5(mm)

8

Back wheel   tread

1700(mm)

9

Front wheel   tread

1880(mm)

10

Min. ground   clearance

355(mm) for   2WD 275(mm) for 4WD

11

Min. ground   clearance of tail

350(landing   leg), 520(centre)

12

Traveling   speed (4 forward and 4 reverse gears)

(1) I gear   forward/reverse

6/6(km/h)

(2) II gear   forward/reverse

9.6/9.6(km/h)

(3) III gear   forward/reverse

20.5/20.5(km/h)

(4) IV gear   forward/reverse

38/38(km/h)

Main Loading   Technical Specification of Backhoe Loader

1

Rated loading   capacity

1700kg(standard   bucket)

2

Operating   weight

8000kg(standard   bucket)

3

Rated bucket   lifting capacity

>34KN

4

Bucket   capacity

1.0m³(standard   bucket)

5

Max. breakout   force

>49kN(swinging   arm), 60(bucket)

6

Max. dumping   clearance

2714mm(standard   bucket)

7

Max. dumping   reach

845mm(standard   bucket)

8

Dumping angle   at full height

43.5º(standard   bucket)

9

Tilting angle   of bucket

On ground

41°

For   transportation

41.7° (350)

10

Max. digging   depth (with bucket bottom horizontal)

80mm

11

Min. turning   radius (centre of the tire outside)

4380mm

12

Lifting time   of loading bucket

≤4.5(sec.)

13

Lowering time   of loading bucket

≤3.5(sec.)

14

Dumping time

≤1.5(sec.)

Main Digging   Technical Specification of Backhoe Loader

1

Rated digging   bucket capacity

0.2(m³)

2

Max. digging   depth

4405(mm)

3

Max. digging   force

>56.1±10%kN(bucket   lip)

4

Max. digging   radius

5390(mm)

5

Max. dumping   height

3510(mm)

6

Central offset

550mm

7

Swing angle

180°

8

Max. rollback   angle of digging bucket

201°

Diesel Engine

1

Model

Dongfeng   Cummins 4BTA3.9-C110

Cummins   B4.5(Optional)

2

Type

Direct   injection, turbocharged, water-cooled

Direct   injection, turbocharged, water-cooled

3

Rated output

82 kW/110HP

74 kW/99HP

4

Rated speed

2200rpm

2200rpm

5

Total   displacement of cylinder

3.9(L)

4.5(L)

6

Cylinder   diameter /stroke

102/120(mm)

102/138(mm)

7

Voltage of   starting motor

12(V)

12(V)

8

Max. torque

460N.m at   1500rpm

414N.m at   1500rpm

9

Starting type

Electric

Electric

10

Min. specific   fuel consumption

207(g/kW.h)

225(g/kW.h)

Transmission   System of Backhoe Loader

I. Hydraulic   Torque Converter

1

Model

CARRARO

2

Cooling type

Pressure oil   circulating

II. Gearbox

1

Model

CARRARO

2

Type

Synchromesh   mechanical shift

3

Gear shift

4 forward and   4 reverse gears

III. Axle and   Tire

1

Model

CARRARO

2

Type of main   reducer

Spiral bevel   gear, single stage

3

Type of final   reducer

Single stage   planetary

4

Max. steering   angle

55°

5

Gradeability

30%

6

Max. drawing   force

43.5±10% (kN)   for 2WD 70±10% (kN) for 4WD

7

Tire type

4WD front tire   12-16.5NHS-10PR (air pressure 4.4) 2WD front tire 11L-16 (air pressure 4.4)

Rear tire 19.5L-24R4-12PR (air pressure 2.4)

Working Device   Hydraulic System of Backhoe Loader

1

Model of   hydraulic pump

HP330B478BIAC12-98-KHAC07-1   (Ningbo HERCURES)

2

System   pressure

230(kgf/cm²)

3

Model of   loading valve

HC-D16/3/60090333ES   (Italy HYDROCONTROL)

4

Model of   priority valve

152B2238   (DANFSS)

5

Model of   digging valve

HC-D16/7/60120753IN   (Italy HYDROCONTROL)

6

Pilot pressure

3MPa

Steering   System

1

Type

Front wheel   steering

2

Model of   steering gear

150-1219   (EATON)

3

System   pressure

140(kgf/cm²)

Oil Capacity   of Backhoe Loader

1

Fuel(diesel)

151(L)

2

Engine   lubricating oil

11(L)

3

Oil for   converter and gear box

18.5(L)

4

Oil for   hydraulic system

110(L)

5

Oil for   driving axles (F/R)

7.6+17(L)
